Case and Extension for 2004 Dodge Durango

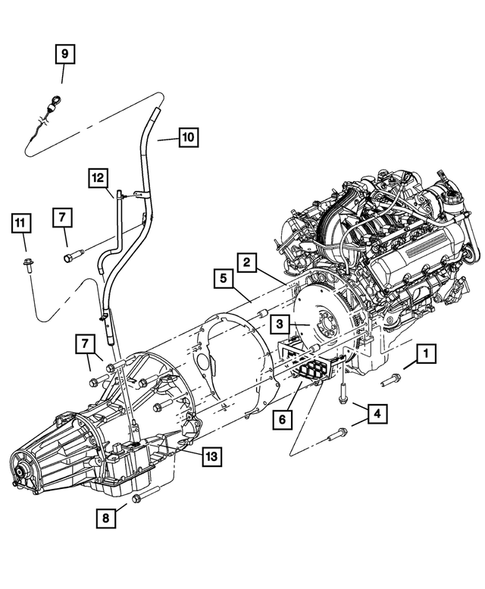

No.
Part # / Description / Price
Price
N/A
Torque Converter Hub Seal
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
MSRP $28.00
$20.15
MSRP $28.00
$20.15
1
Hex Head Screw And Washer Mopar
Mopar Description: .437-14x2.00. Pinion Nose Bracket to Transmission Outboard
MSRP $12.70
$9.14
MSRP $12.70
$9.14
3
Hex Head Lock Bolt, Mounting Mopar
Mopar Description: M10X1.00X18.00. Torque Converter Drive Plate To Crankshaft
MSRP $8.25
$5.87
MSRP $8.25
$5.87
4
Hex Head Bolt And Washer, Mounting Mopar
Mopar Description: M10x1.50x45.00. Structural Collar To Transmission. Late Production
MSRP $7.60
$5.38
MSRP $7.60
$5.38
5
Block To Clutch Housing Dowel, Mounting Mopar
Mopar Description: [1/2 x 3/4]. Cylinder Block To Transmission
MSRP $12.50
$8.89
MSRP $12.50
$8.89
7
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION. ALL AUTO TRANS (DO NOT USE 2010+). MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: .375-16x1.50. Transmission Case to Cylinder Block
MSRP $12.50
$9.08
MSRP $12.50
$9.08
9
Transmission Fluid Level Indicator Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: TRANSMISSION FLUID LEVEL
9
11
Hex Flange Head Bolt Mopar
Mopar Description: M6X1.00X17.00. Vapor Canister Cover & Heat Shield to Bracket
MSRP $8.60
$6.23
MSRP $8.60
$6.23
13
Grommet Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: After [08/02/04]. Transmission Oil Filler Tube. Fill Tube Seal. Oil Filler Tube To Case.
MSRP $11.65
$8.41
MSRP $11.65
$8.41

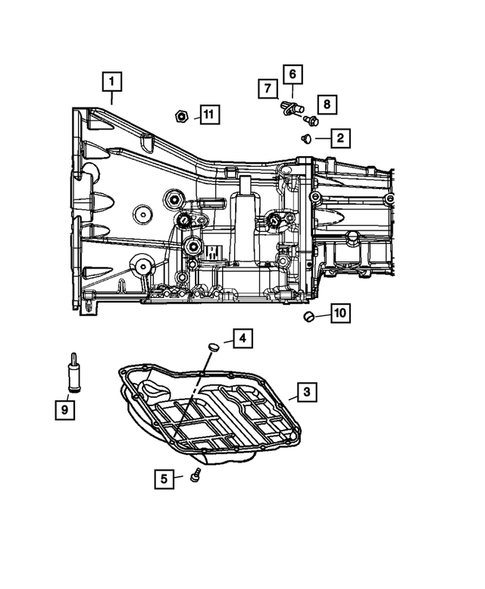

No.
Part # / Description / Price
Price
N/A
Transmission Fluid Level Indicator Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: TRANSMISSION FLUID LEVEL
2
Transmission Case Plug Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: Located near the top, on the side of the case
MSRP $7.20
$5.08
MSRP $7.20
$5.08
3
Valve Body Gasket And Seal Package Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: Can be used with Oil Pans 52852912AA and 52852912AB
MSRP $8.60
$6.11
MSRP $8.60
$6.11
3
Transmission Oil Pan Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: After 1/27/2003
3
Transmission Oil Pan Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: After 1/27/2003.
MSRP $134.00
$87.63
MSRP $134.00
$87.63
4
Transmission Magnet Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: 52099211ab.
MSRP $14.10
$10.04
MSRP $14.10
$10.04
5
Hex Flange Head Bolt Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: M8x1.25x16
MSRP $8.40
$6.05
MSRP $8.40
$6.05
6
Transmission Input Speed Sensor Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Input and Output Speed Sensor.
MSRP $60.70
$41.86
MSRP $60.70
$41.86
7
Transmission Output Speed Sensor Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: Output Speed Sensor.
MSRP $101.00
$66.60
MSRP $101.00
$66.60
8
Hex Head Bolt And Coned Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: M6X1.00X20.00
MSRP $8.90
$6.41
MSRP $8.90
$6.41
9
Cooler Bypass Valve Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
MSRP $97.45
$64.88
MSRP $97.45
$64.88
10
Dowel Bushing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: Valve Body to Case.
MSRP $17.55
$12.58
MSRP $17.55
$12.58
11
Transmission Case Nut Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: Fittings for the Cooler Tubes at the Transmission Case

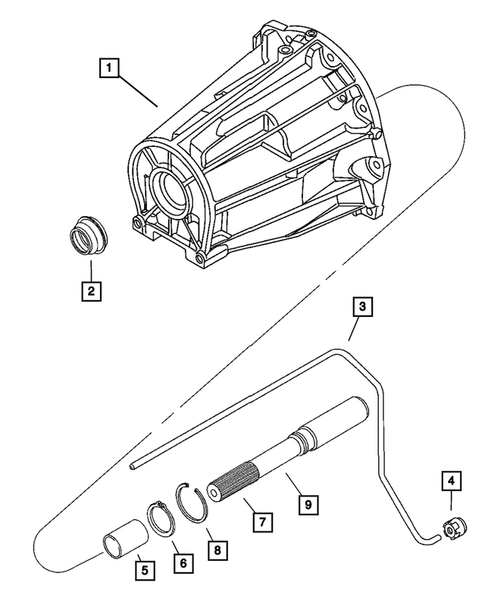

No.
Part # / Description / Price
Price
1
Transmission Rear Extension Housing Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
2
Output Shaft Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: Rear Extension Seal 2WD.
MSRP $52.30
$35.88
MSRP $52.30
$35.88
3
Tube And Grommet Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: Bearing Lube. Extension Lubrication. Includes Item #2.
4
Transmission Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION.
Description: Oil Feed Seal. Oil Feed Tube. Lube Tube Grommet Seal.
MSRP $19.00
$13.73
MSRP $19.00
$13.73
7
Output Shaft Bearing, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: 52105959aa. From 9/10/02. Rear.
8
Snap Ring, Rear Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RLE TRANSMISSION. 5-SPD AUTOMATIC 545RFE TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: Rear.
MSRP $11.55
$8.29
MSRP $11.55
$8.29
No.
Part # / Description / Price
Price

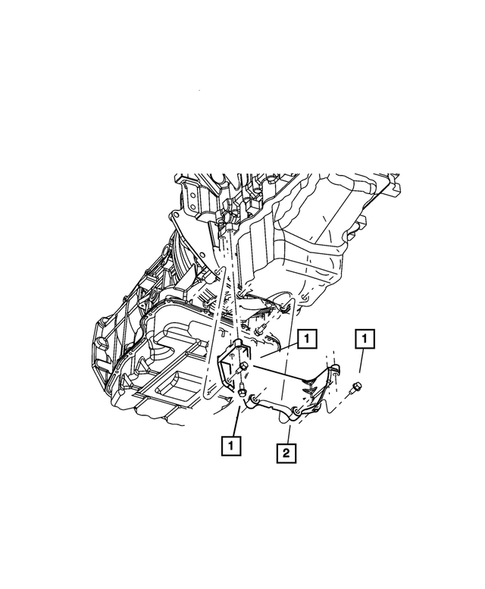

1
Hex Head Bolt And Washer, Mounting Mopar
Mopar Description: M10x1.50x45.00. Structural Collar To Transmission. Late Production
MSRP $7.60
$5.38
MSRP $7.60
$5.38
