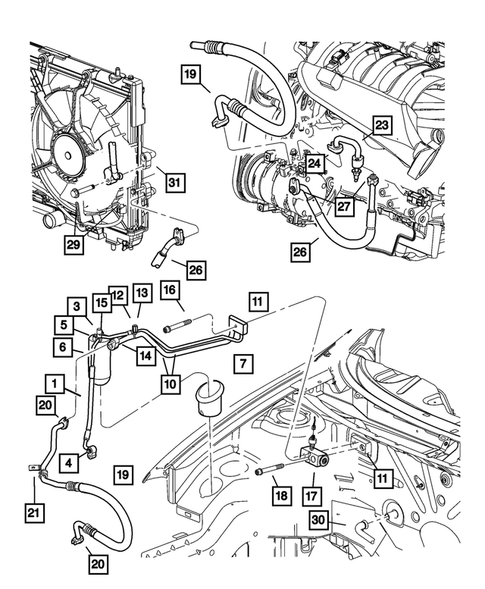

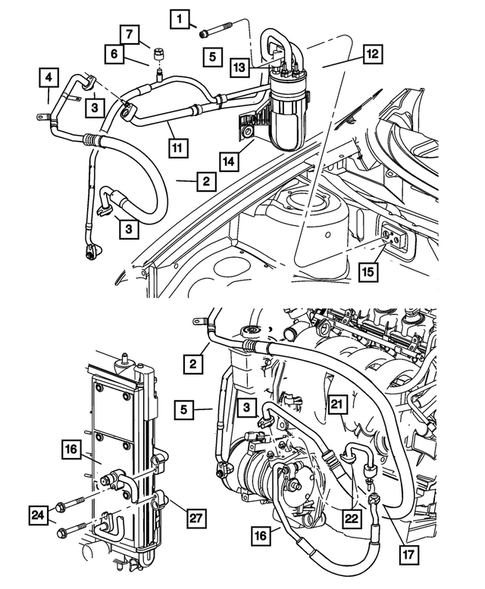

Air Conditioner and Heater Plumbing for 2004 Dodge Neon
No.
Part # / Description / Price
Price
N/A
A/c Line Valve Core
Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: A/C LINE
MSRP $31.60
$22.75
MSRP $31.60
$22.75
N/A
A/c Check Valve Cap Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: Up to 01-09-2002
N/A
Vacuum Check Valve Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
N/A
A/c Discharge Line Check Valve Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
MSRP $31.50
$22.69
MSRP $31.50
$22.69
N/A
A/c Discharge Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: 1/2 inch. To Drier. 1/2 Red.
N/A
Hex Lock Nut, Mounting Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: M8x1.25. Oil Pickup Tube To Cylinder Block
MSRP $9.20
$6.66
MSRP $9.20
$6.66
N/A
A/c Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Switch
N/A
A/c Suction Line Clip Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 5-SPEED MANUAL T350 TRANSMISSION.
2
A/c Suction Line, Manual Transmission Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 5-SPEED MANUAL T350 TRANSMISSION.
Description: A/C SUCTION
2
A/c Suction Line, Automatic Transaxle Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: A/C SUCTION
3
A/c Suction Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: To Compressor
4
A/c Line Bracket Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
5
A/c Liquid Line Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Up to 11-12-2003
5
A/c Liquid Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: After 11-12-2003
6
Charging Valve Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
7
A/c Charge Valve Cap Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
11
A/c Suction Line Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
12
Air Conditioning Accumulator Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Up to 11-12-2003
12
Air Conditioning Accumulator Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: After 11-12-2003
13
A/c Low Pressure Cut Off Switch Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
14
Accumulator Bracket Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
15
Valve To Evaporator Gasket Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Up to 12/11/2001
16
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
21
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: Jumper
24
Hex Head Screw And Washer, Mounting, Right Mopar
Mopar Description: .19-16x1.00. Rear. [M6X1.00X45.00]. Timing Belt Cover To Cylinder Block
27
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
27
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. Magneti-Marelli Offered By MOPAR, See Note.
No.
Part # / Description / Price
Price
N/A
N/A
Hex Lock Nut, Mounting Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: M8x1.25. Oil Pickup Tube To Cylinder Block
MSRP $9.20
$6.66
MSRP $9.20
$6.66
N/A
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: M6X1.00X20.00. Outer Timing Case Cover To Inner Cover
4
A/c Discharge Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: 1/2 inch. To Drier. 1/2 Red.
23
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: Jumper
29
Hex Head Screw And Washer, Mounting, Right Mopar
Mopar Description: .19-16x1.00. Rear. [M6X1.00X45.00]. Timing Belt Cover To Cylinder Block
No.
Part # / Description / Price
Price

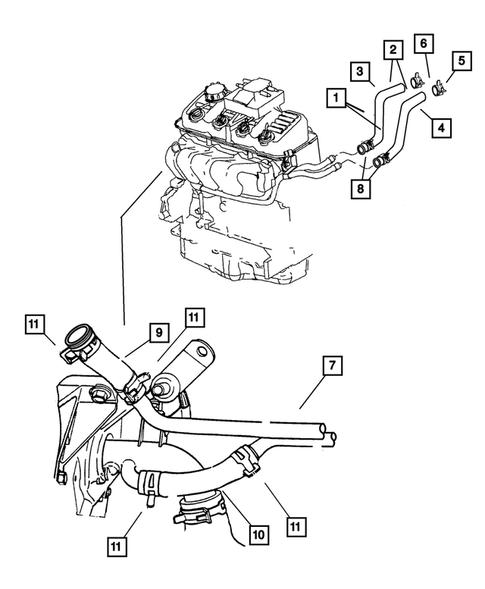

1
Heater Core To Tube Hose Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: HEATER CORE TO TUBE
MSRP $71.35
$49.05
MSRP $71.35
$49.05
5
Supply Hose Clamp, Mounting Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: 26 mm Diameter. [Open DIameter = M26.0 THK=1.30]. Oil Cooler To Water Inlet
MSRP $8.60
$6.11
MSRP $8.60
$6.11
7

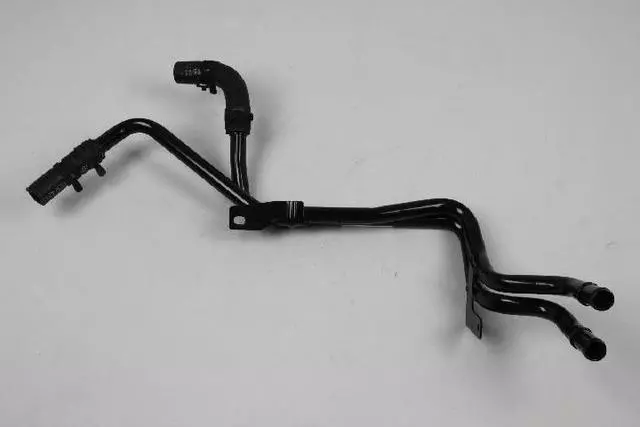

Heater Core Tube Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
7
Heater Core Tube Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
10
Heater Hose Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE.
Description: Tube to Pump (Serviced in Item #6)
No.
Part # / Description / Price
Price
4
A/c Discharge Line O Ring Mopar
Mopar Notes: Engines: 1.6L I4 SOHC 16V SMPI. 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: 1/2 inch. To Drier. 1/2 Red.
20
A/c Discharge Line Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. 2.4L I4 DOHC 16V HO TURBO ENGINE.
Description: Jumper
21
Air Conditioning Condenser Mopar
Mopar Notes: Engines: 2.0L I4 SOHC 16V HI PERF ENGINE. 2.0L I4 SOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION. 5-SPEED MANUAL T350 TRANSMISSION.
Description: NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
22
Hex Head Screw And Washer, Mounting, Right Mopar
Mopar Description: .19-16x1.00. Rear. [M6X1.00X45.00]. Timing Belt Cover To Cylinder Block
